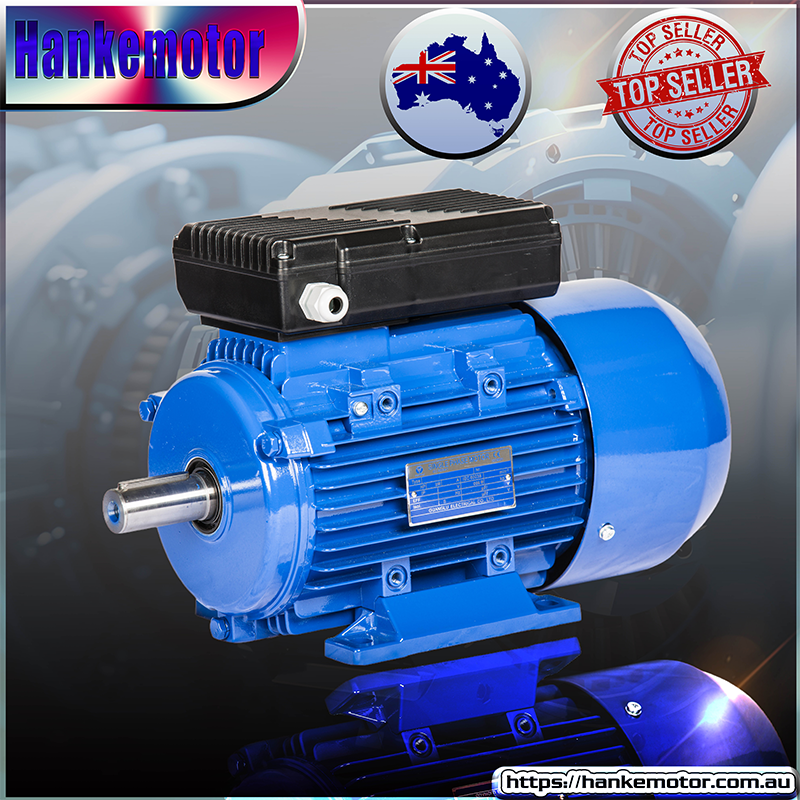

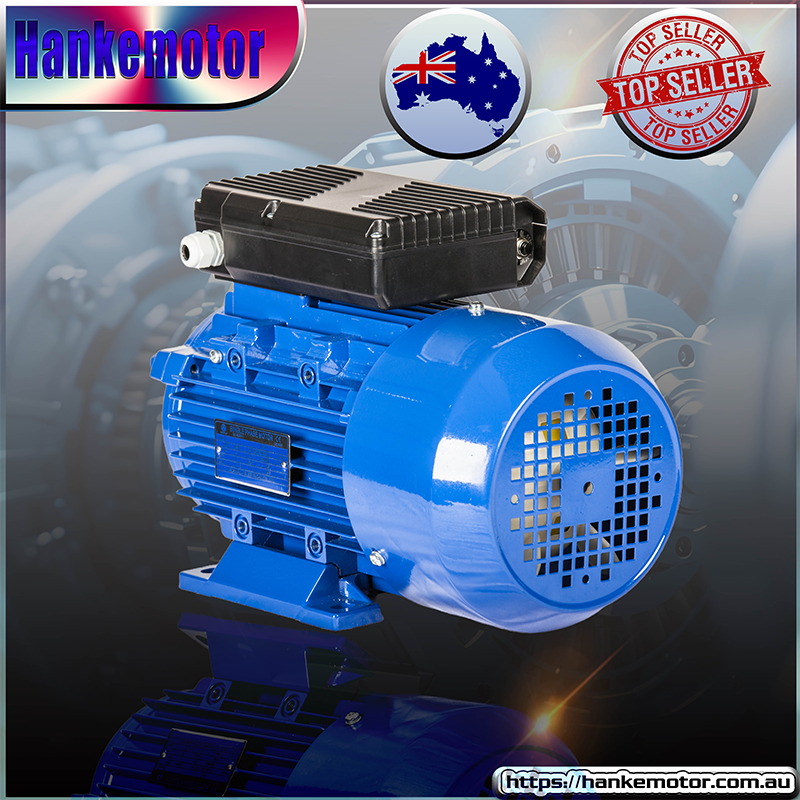

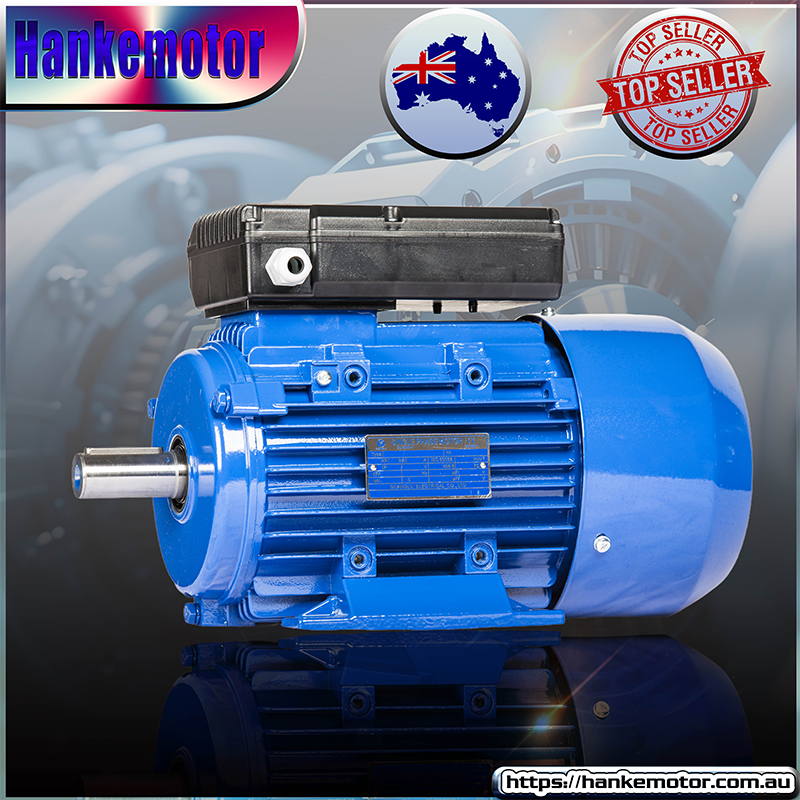

0.75kw 1HP 1400rpm shaft 5/8" OR 16mm Electric motor single-phase cement mixer

$198.00 In Stock Sold out
Add to wishlist Added to wishlist
Categories: Single-phase Motor 240v, Single-phase Motor 240v - 4 Poles 1400rpm

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • description
  • Technical parameters
  • Installation dimension
  • Bearing Size
  • Useful Downloads
  • Related Policy
    • Power: 0.75kw/1HP
    • Model: GMYL802-4 16mm
    • Single-Phase: 240v
    • Maximum Amps Draw:4.6Amps
    • Speed: 1400rpm (4 Pole)
    • Shaft size: 16mm
    • Light weight
    • Please click download for the full measurement of this motor.
    • We have single and three-phase electrical motor.
    • ( 0.18kw-315kw )(2,4,6 and 8 pole)




    --

    CSCR (Capacitor starts and capacitor runs) Motor
    Circuit breaker installed and dedicated for the particular single phase motor at no extra cost!
    TEFC (Total Enclosed Fan Cooled)
    Reverse Motor: All single phase & three phase motors are reversible!
    Brand new motor. One year warranty.



    TECHNICAL DATA OF GMYL SERIES
    Franme reference and size rated power Full load sreed in revolutions per minute Full load current at rated voltage Exiciter Voltage Efficiency Power factor Direct on line staring torque ratio Direct on line pull out torque ratio Direct on line starting current ratio Mean sound pressure level @1m on no load Start Capacitor Running Capacitor Weight
    Type Output Speed Amps Voltage EFF. P.F. LRT/RLT BDT/RLT LRA/RLA Noise (μf/v) (μf/v) Weight
    (KW) (r/min) (A) (V) (%) Cosφ LwdB(A) (Kg)
    GMYL711-2 0.37 2800 2.7 240 67 0.92 1.8 1.6 5.5 72 50/250 8/450 10
    GMYL712-2 0.55 2800 3.9 240 70 0.92 1.8 1.6 5.5 72 100/250 15/450 11
    GMYL711-4 0.25 1400 2 240 62 0.92 1.7 1.6 5.0 67 75/250 15/450 9
    GMYL712-4 0.37 1400 2.8 240 65 0.92 1.7 1.6 5.0 67 75/250 15/450 10
    GMYL801-2 0.75 2800 4.9 240 73 0.95 1.8 1.6 5.5 75 100/250 25/450 14
    GMYL802-2 1.1 2800 7 240 75 0.95 1.8 1.6 5.5 75 100/250 30/450 15
    GMYL801-4 0.55 1400 3.95 240 69 0.92 1.7 1.6 5.0 70 100/250 15/450 13
    GMYL802-4 0.75 1400 5.05 240 71 0.95 1.7 1.6 5.0 70 100/250 25/450 14
    GMYL90L1-2 1.5 2800 9.4 240 76 0.95 1.8 1.6 5.5 78 200/250 40/450 22
    GMYL90L2-2 2.2 2800 13.7 240 77 0.95 1.7 1.6 5.5 78 300/250 50/450 24
    GMYL90L1-4 1.1 1400 7.3 240 72 0.95 1.7 1.6 5.0 73 150/250 30/450 21
    GMYL90L2-4 1.5 1400 9.7 240 74 0.95 1.7 1.6 5.0 73 200/250 40/450 23
    GMYL100L-2 3 2222 18.2 240 79 0.95 1.7 1.6 6.0 83 350/250 55/450 24
    GMYL100L1-4 2.2 1400 13.9 240 76 0.95 1.7 1.6 5.0 78 300/250 50/450 32
    GMYL100L2-4 3 1400 18.4 240 78 0.95 1.7 1.6 5.0 78 350/250 55/450 33
    GMYL112M-2 3.7 2800 22.1 240 80 0.95 1.7 1.6 6.0 83 350/250 60/450 46
    GMYL112M-4 3.7 1400 20.8 240 78 0.95 1.7 1.6 5.0 78 350/250 60/450 44
    GMYL132M-2 5.5 2800 31.5 240 78 0.95 1.7 1.6 5.0 78 350/250 75/450 55
    GMYL132M-4 5.5 1400 32.4 240 78 0.95 1.7 1.6 5.0 78 350/250 75/450 55
    MOUNTING DATA FOR GM
    Frame with feet and end-shield with flange (IM B35)
    FRAME SIZE POLES A B C D E F G H K P N M S T AB BB AC HD L
    63 2、4 100 80 40 11 23 4 8.5 63 7 140 95 115 10 3 135 100 120 182 217
    71 2、4 80 80 45 14 30 5 11 71 7 160 110 130 10 3.5 150 112 135 190 250
    80 2、4 125 100 50 19 40 6 15.5 80 10 200 130 165 12 3.5 165 125 160 215 290
    90S 2、4 140 100 56 24 50 8 20 90 10 200 130 165 12 3.5 180 156 175 230 315
    90L 2、4 140 125 56 24 50 8 20 90 10 200 130 165 12 3.5 180 156 175 230 340
    100L 2、4 160 140 63 28 60 8 24 100 12 250 180 215 15 4 205 172 195 250 425
    112M 2、4 190 140 70 28 60 8 24 112 12 250 180 215 15 4 245 181 215 285 450
    132S 2、4 216 140 89 38 80 10 33 132 12 300 230 26B 15 4 280 186 255 335 550
    132M 2、4 216 178 89 38 80 10 33 132 12 300 230 265 15 4 260 224 259 330 525
    Frame Size Poles Drive End Non-Drive End
    International type Internationat type
    63 2-4 6201-2RZ 6201-2RZ
    71 2-4 6202-2RZ 6202-2RZ
    80 2-4 6204-2RZ 6204-2RZ
    90 2-6 6205-2RZ 6205-2RZ
    100 2-6 6206-2RZ 6206-2RZ
    112 2-6 6306-2RZ 6306-2RZ
    132 2-6 6308-2RZ 6308-2RZ
    GMYL CATALOGUE
    GMYL-90L Drawing
